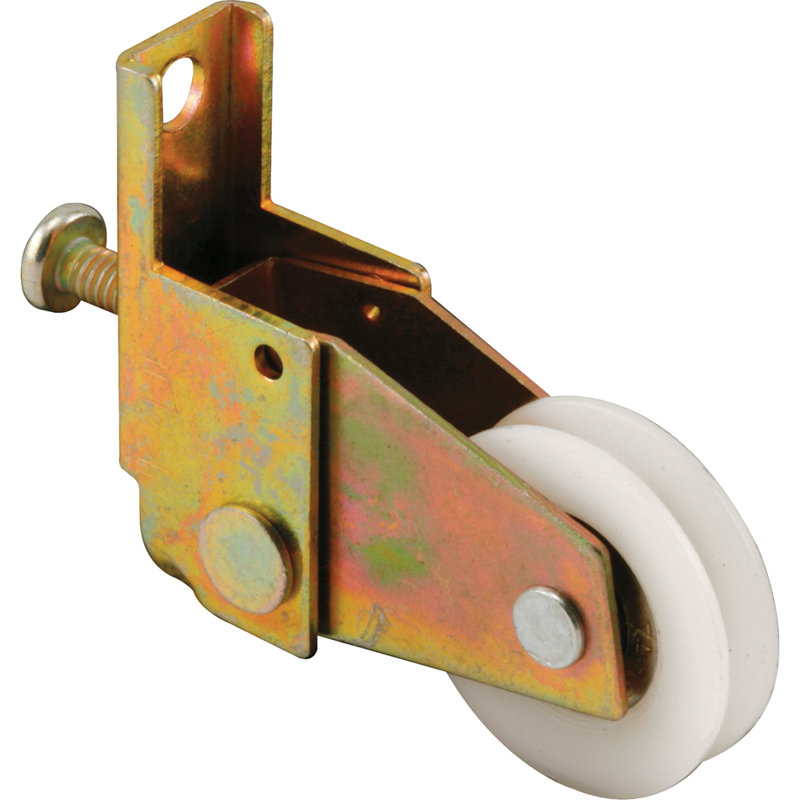

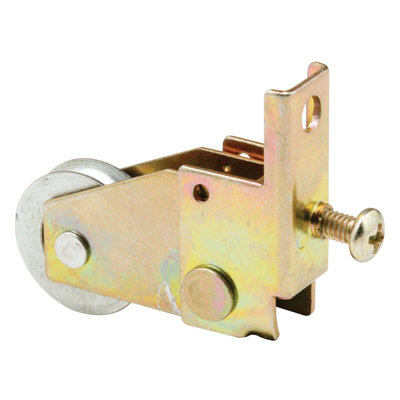

This spring-loaded style sliding screen door roller is used doors made by Pacesetter. The steel housing has a steel inner housing with a 1 in. high density polyethylene ball bearing roller. The housing has a mounting tab with a hole for the installation screw to fit into. There is an adjustment screw at the end to adjust height.
Not Included:
Lock
Features
Used by Pacesetter doors and a variety of other sliding screen door manufacturers that require a roller 1 inch tall
The roller has a 1 inch diameter, a 1/4 inch width and is constructed from white high density polyethylene
The housing is constructed from stamped steel for durability and features a mounting tab with hole for installation

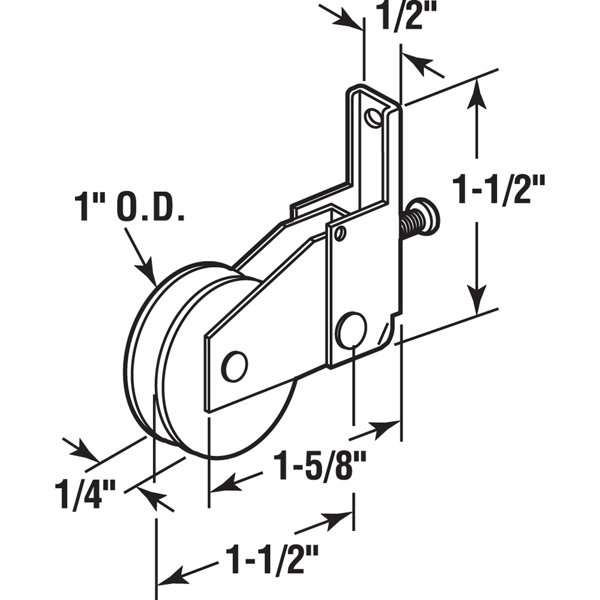

Please refer to the line art drawing for dimensions and compare with your needs before purchasing (Not Universal)
Spring-loaded inner roller housing
Product Dimensions
Other Dimensions
Overall
5.44'' H X 3.82'' W X 0.88'' D
Overall Product Weight
0.15 lb.
Details
Product Type
Shutter / Door Accessory
Function
Keyless Entry
Material
Plastic
Handle(s) Included
No
Compatible Door Type
Exterior
Outdoor Use
Yes
Imported
Yes
Durability
Corrosion Resistant
Assembly
Assembly Required
No
Mounting / Installation Required
Yes
Additional Parts Required (Not Included)
No
Number of Mounting Holes
1
Warranty
Commercial Warranty
No
Product Warranty
Yes
Warranty Length
1 Year
Full or Limited Warranty
Limited
Warranty Details 2
Warranty: Goods are warranted against manufacturing defects for 1 year. In no case is Prime-Line responsible for user related damage or damage incurred during installation. Warranty is void if products are subjected to abnormal conditions, misapplication or abuse.
