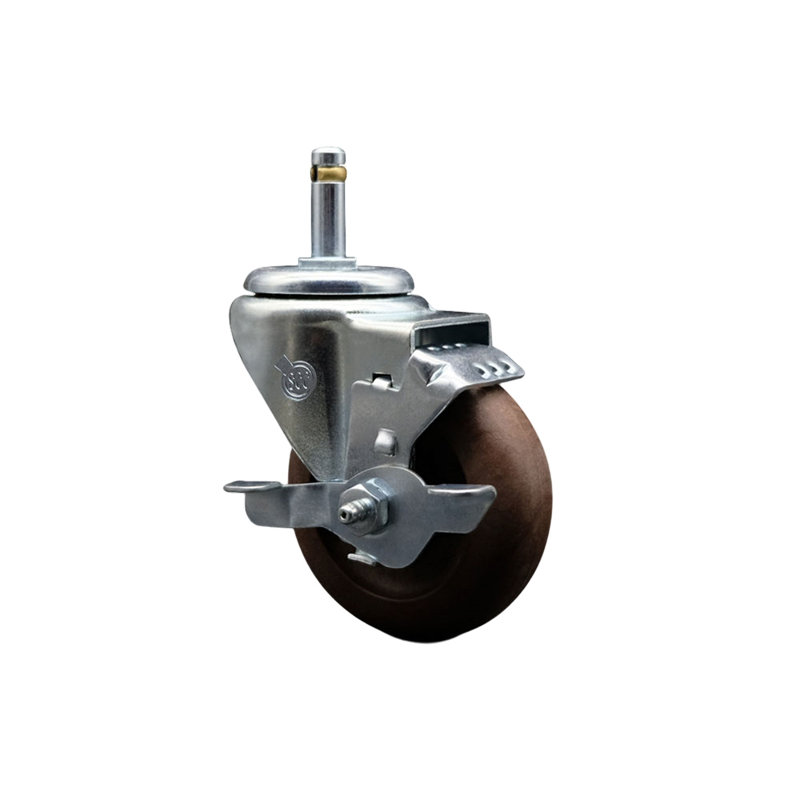

Listing is for one (1) Service Caster Series #20 swivel caster with a 3-1/2" diameter by 1-1/4" wide high temp glass filled nylon wheel and a 7/16" grip ring stem with brake capable of supporting 350 lbs./caster.
Features

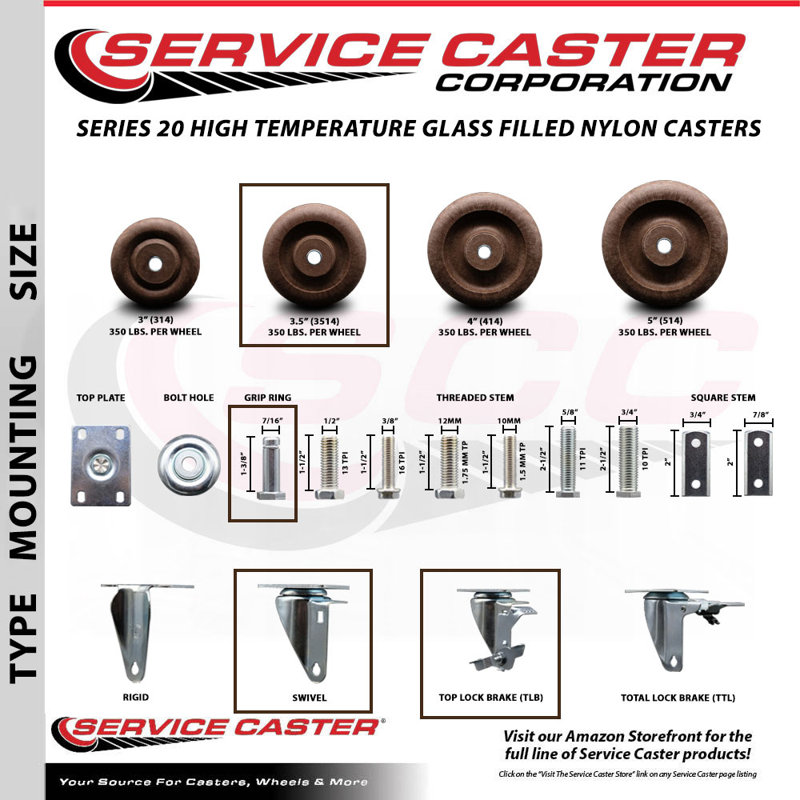

These Service Caster Series #20 High Temperature Glass Filled Nylon casters offer various wheel sizes and mounting heights: 3-1/2” wheel: 4-5/8” mounting height

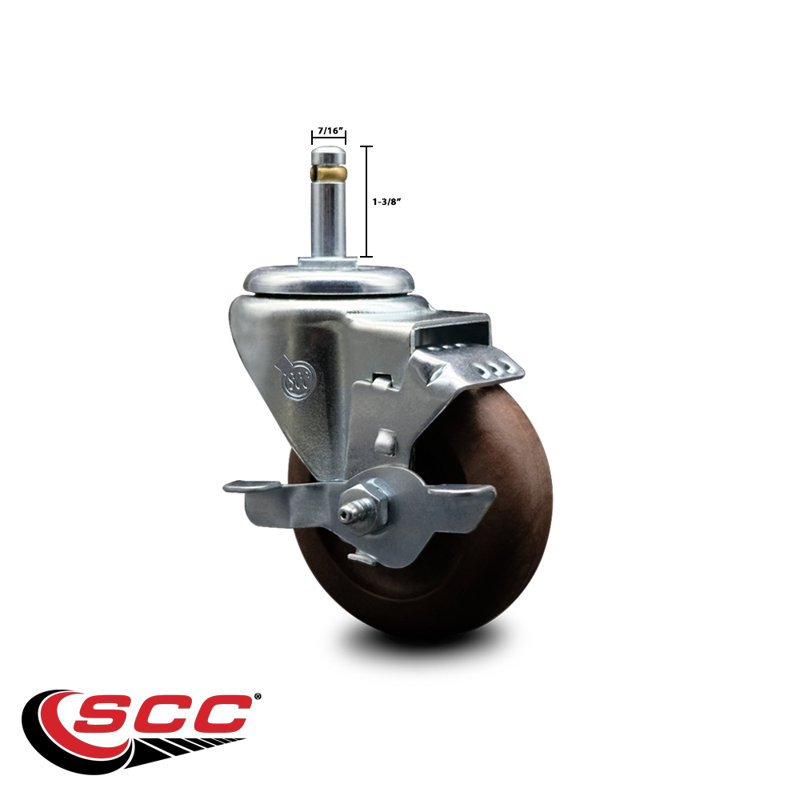

All casters feature a 7/16” diameter by 1-3/8” long grip ring stem. Service Caster recommends using a drill or hardware gauge, a 7/16” wrench, or our paper wrap method to ensure the grip ring stem diameter needed is 7/16”. Paper Wrap Method: take a small strip of paper and wrap it around the stem. Mark the paper with a pen where it overlaps, keep the wrap tight. Measure the strip from the start of the wrap to the mark. The ruler should measure 1-3/8". Don’t see the size you need? Call us!
Brake options include a top lock brake (TLB) or a total lock brake (TTL). The top lock brake (TLB), which is featured on 3", 3-1/2", 4", and 5" wheel sizes, places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL), which is featured on all wheel sizes, also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a complete stationary position.
Product Dimensions
Other Dimensions
Overall
5'' H X 5'' W X 5'' D
Overall Product Weight
1.6 lb.
Details
Product Type
Casters
Material
High Temperature Glass Filled Nylon
Assembly
Assembly Required
No
Mounting / Installation Required
Yes
Additional Parts Required (Not Included)
Yes
