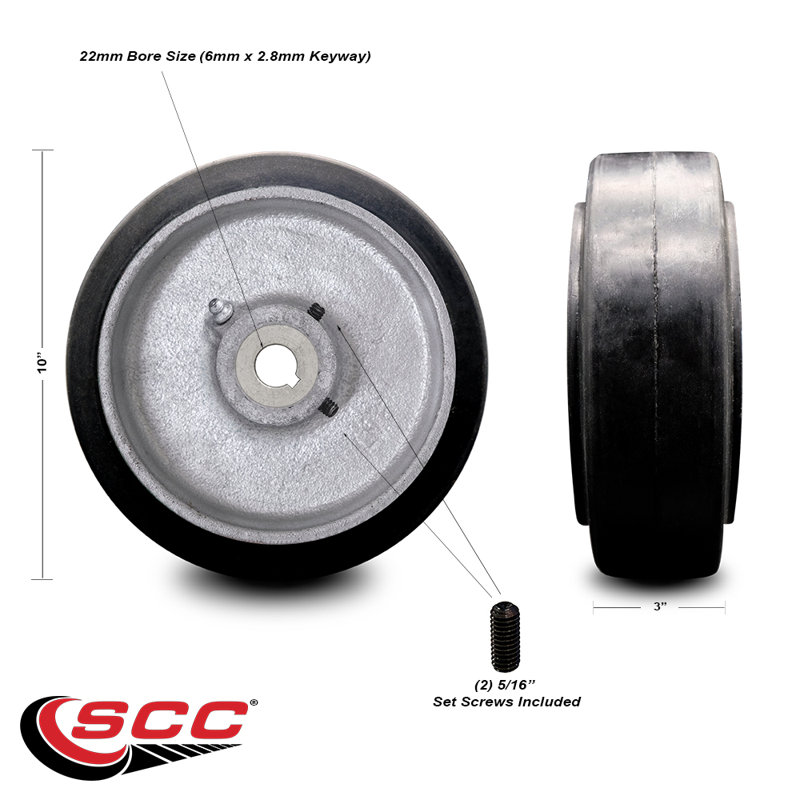

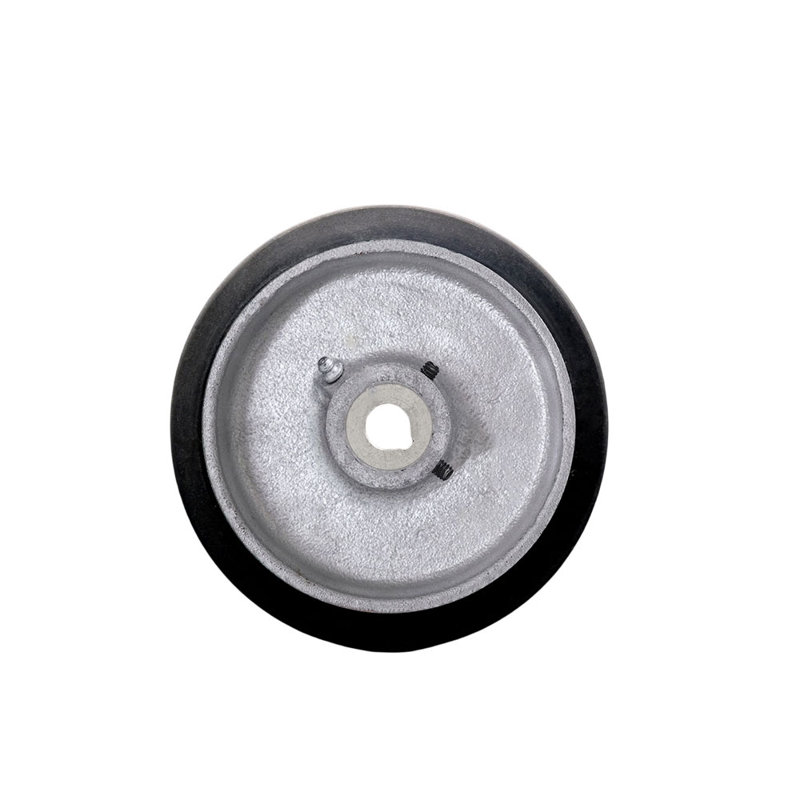

Listing is for one (1) Service Caster 10" diameter by 3" tread width keyed drive wheel.
Features
Service Caster’s Rubber on Silver Cast Iron core wheels come in three different wheel sizes – 6" x 3", 8" x 3", and 10" x 3".
Weight capacity: 750 lbs. per wheel (Weight capacity can vary depending on load, torque, speed, duty cycle, environment, and coefficient of friction)

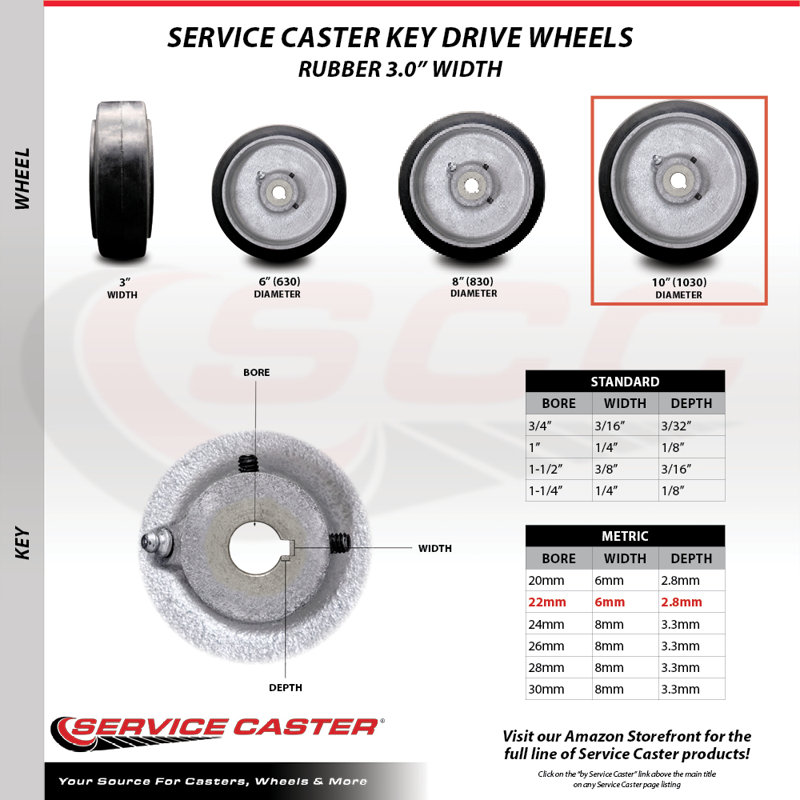

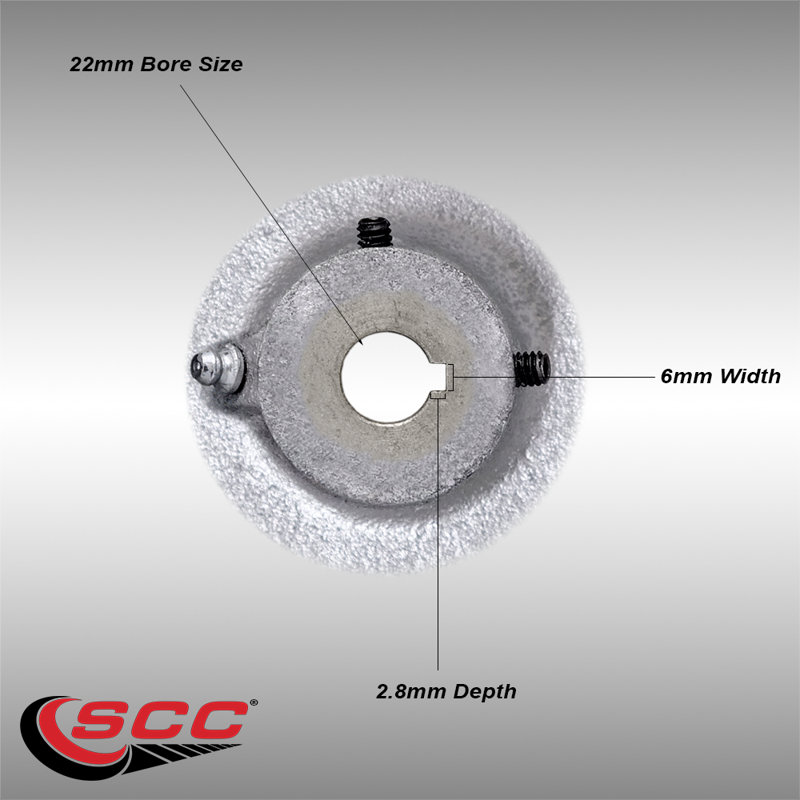

Six different bore sizes are available - 20MM (6mm W x 2.8mm D Keyway), 22MM (6mm W x 2.8mm D Keyway), 24MM (8mm W x 3.3mm D Keyway), 26MM (8mm W x 3.3mm D Keyway), 28MM (8mm W x 3.3mm D Keyway), and 30MM (8mm W x 3.3mm D Keyway). All wheel sizes have a 3-1/4" hub length. The hub length is the widest point of the wheel, so it is important to ensure you can accommodate this width before purchasing.
Rubber on cast iron is the most versatile and cost-effective industrial wheel on the market. The non-marking and non-sparking tread protects floors, rolls quiet and is resistant to most chemicals, while the high capacity load bearing wears like iron. Finally, featuring a 70-80 Shore (A) durometer, this wheel is a great option for anyone looking for a keyed drive wheel.
Product Dimensions
Other Dimensions
Overall
7.5'' H X 12'' W X 12'' D
Overall Product Weight
13.95 lb.
Details
Product Type
Casters
Material
Rubber on Cast Iron
Assembly
Assembly Required
No
Mounting / Installation Required
Yes
Additional Parts Required (Not Included)
Yes
